RF EQUIPMENT

Signal generator, spectrum analyser, power meter…

RadiPower

Attenuators, Loads, cables, dedicated to EMC

câbles

CDN

The common mode current disturbance signal can be brought to the test object using various Cdns to inject the signal on uncontrolled cables, shielded cables, balanced cables, coaxial cables and mains power. Decoupling networks are used to ensure that the disturbance signal does not affect the auxiliary equipment and is placed between the test object and the auxiliary equipment.

  • CISPR 15
  • CISPR 20
  • IEC 61000-4-5
  • IEC 61000-4-6
  • IEC 61000-4-16
  • EN55015 et EN55035



Full range for many cables EST (AF, M, S et T)

power series

LISN

A line impedance stabilization network (LISN) is a device used in the emission and susceptibility testing of conducted and radiated radiofrequencies, as specified in various electromagnetic compatibility (EMC) standards/Emifilter typically passes between a AC or DC power source and the EUT to create a known impedance and provide a radio frequency noise measurement port. It also isolates unwanted RF signals from the power source

  • FCC Part 15
  • ANSI C63.4
  • CISPR 22/32
  • CISPR 25

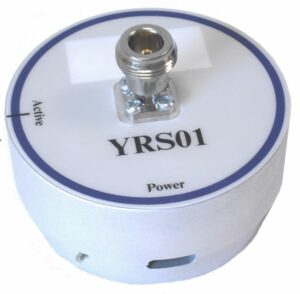

NOISE SOURCES & COMB GENERATORS

Our range of noise sources and comb generators  is used to check the settings of the tests and measurements and ensure the validity of the test results.

. Noise sources,
. Comb generators,
. Combination: Noise source and comb generator

yrs01

EMC Shielded cameras

Shielded cameras for EMC environment: video camera via optical transmission.
for indoor or outdoor applications
Manual or automatic control as required,
Models for small rooms available
Wide range of accessories available: screen, tripod, offset on request

NEAR FIELD PROBE with Tip contact

kit de sondes champ proche
  • Complete Solution – Includes E and H field probes
  • Locate Noise Source – Down to a pin with the fine tip
  • Frequency range

    • 400 Hz – 5 GHz

    or

    • 9 kHz – 5 GHz
